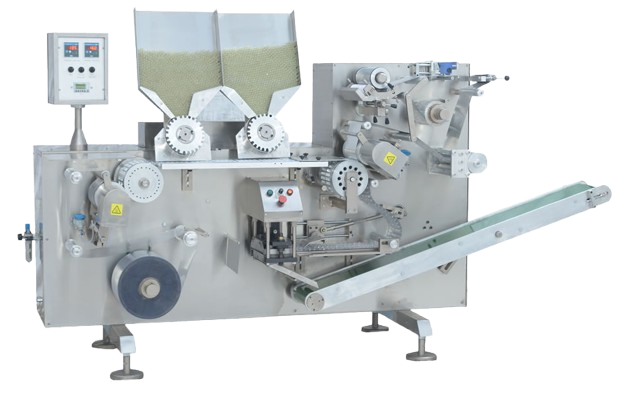

VIALVAC II

Thermo-form Blister Packing Machine

Network Error

Innojet's Lab & Pilot Granulation Equipment: Leading the Way

250 EVO
250 EVO

Key Features

Network Error

Control of the four critical variables during the granulation: mixing speed / binding liquid flow

Network Error

Three interchangeable bowls of 2, 5 and 10 litres.

Network Error

Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

Technical Specifications

DESCRIPTION Model : VIALVAC-II
PVC Base Film Width 210 mm Max.
PVC Base Film Thickness 0.25 - 0.4 mm Max.
Sealing Foil Width 206 mm Max.
Sealing Foil Thickness 0.02 - 0.04 mm Max.
Format Area 210 mm X 126 mm
Forming Depth 20 mm
Max Output 35 Strokes/minutes
Machine Dimensions in mm L : 2900 | W : 1100 | H : 1800
Machine Weight 1100 kg. (Approx)

Packaging Materials

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP

Lidding Material: Aluminum with Heat Sealable lacquer Coating, Glassine paper.

Machine Layout

Network Error

Utilities Requirement

Compressed Air : 7 CFM dry air at pressure of 6.0 kg/cm²

Water Cooler : 150 Liters / Hour Temperature 15°C to 20°C @pressure 2.5 kg/cm²

Electrical Power : 7.5 kW, 415 V, 50 Hz, 3 Phase + N+E .

Earthing Cable : Copper 2.5 mm² (Minimum)
