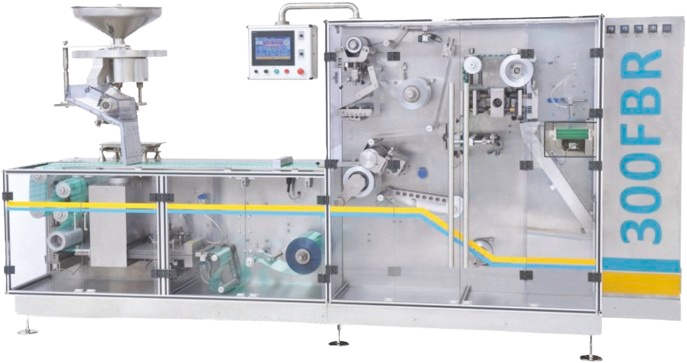

300 FBR

Blister Packing Machine Model.

Network Error

Innojet's Lab & Pilot Granulation Equipment: Leading the Way

250 EVO
250 EVO

Key Features

Network Error

Control of the four critical variables during the granulation: mixing speed / binding liquid flow

Network Error

Three interchangeable bowls of 2, 5 and 10 litres.

Network Error

Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

Technical Specifications

DESCRIPTION Model: 300 FBR
PVC Base Film Width 227 mm Max.
PVC Base Film Thickness 0.25 - 0.4 mm Max.
Sealing Foil Width 227 mm Max.
Sealing Foil Thickness 0.02 - 0.04 mm max.
Format Area 227mm X 180 mm
Forming Depth 12 mm
Max. Output 315 packs/minutes
Machine Dimensions in mm L : 4700 | W : 1200 | H : 1950
Machine Weight 2100 kg. (Approx)

Packaging Materials

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP

Lidding Material: Aluminum with Heat Sealable Lacquer Coating.

Machine Layout

Network Error

Utilities Requirement

Compressed Air: 17 CFM dry air at pressure 6.0 kgs / cm²

Water Cooler: 150 Liters / Hour Temperature 15°C to 20°C @pressure 2.5 kg/cm²

Electrical Power: 11 kW, 415 VAC, 50 Hz, 3 Phase + N+E.

Earthing Cable: Copper 2.5 mm² (Minimum)
