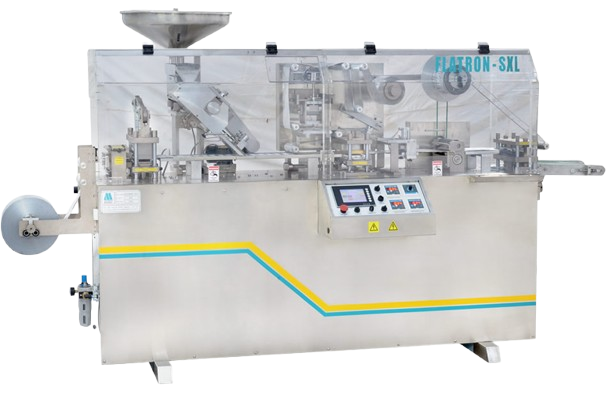

FLATRON_SXL

Blister Packing Machine Model.

Network Error

Innojet's Lab & Pilot Granulation Equipment: Leading the Way

250 EVO
250 EVO

Key Features

Network Error

Control of the four critical variables during the granulation: mixing speed / binding liquid flow

Network Error

Three interchangeable bowls of 2, 5 and 10 litres.

Network Error

Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

Technical Specifications

DESCRIPTION COLD FORMING THERMO FORMING
Base Film Width Max. Alu. Foil 150 mm Pvc Film 150 mm
Base Film Thickness Max. Alu. 0.13 - 0.15 mm Pvc 0.20 - 0.40 mm
Base Film Reel Dia. Alu. 440 mm Pvc 440 mm
Sealing Foil Thickness Max. 0.02 - 0.04 mm 0.02 - 0.04 mm
Format Area 150 mm X 100 mm 150 mm X 100 mm
Forming Depth 12 mm 12 mm
Max. Output 35 strokes/minutes 35 strokes/minutes
Machine Dimensions in mm. L: 3000
W: 1300
H: 1700 mm
Machine Weight 1050 kg. (Approx)

Packaging Materials

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP/ALU-ALU.

Lidding Material: Aluminum with Heat Sealable Lacquer Coating.

Machine Layout

Network Error

Utilities Requirement

Compressed Air : 27 CFM Dry Dry Air at pressure 8.0 Kg/cm² .

Water Cooler : 150 Liters / Hour Temperature 15°C to 20°C @pressure 2.5 kg/cm²

Electrical Power : 5.0 kW, 415 V, 50 Hz, 3 Phase + N+E.

Earthing Cable : Copper 2.5 mm² (Minimum)
